Quick Post Plus™ System with Indoor Alarm

Easy to install Quick Post Plus™ system with indoor alarm provides convenient wiring connection and system monitoring for pump station applications.

The Quick Post Plus™ system features an 8 x 8 x 4 inch enclosure to connect alarm wiring and incoming power. The provided pump switch receptacle plug pigtail is available in 120 VAC or 230 VAC to accept a piggyback plug, pump plug, and optional ETM. The provided factory-installed 22″ weather proof post features access door for easy wiring. The system also includes the riser extension conduit with stainless steel compression nuts to connect the mounting post to the riser, two cord seals, Tank Alert® AB or Tank Alert® AB DUO alarm, and SJE SignalMaster® control switch.
The post can be mounted directly into the ground, over 4″ x 4″ (10.16 x 10.16 cm) post or over conduit.

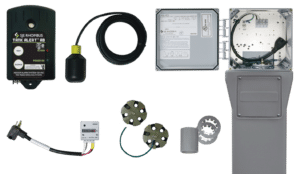

qpp indoor panel with accessories

Features

  • NEMA 4X enclosure with hinged door.
  • Factory installed mounting post with access cover for easy wiring.
  • Receptacle pigtail (120 VAC or 230 VAC) and wiring terminal blocks for easy field connections.
  • Separate alarm and pump control circuit.
  • Riser extension 2.5 inch (6.35 cm) diameter coupling conduit to accommodate float piggyback plug.
  • Riser extension stainless steel compression nuts provide easy adjustability and strong connection.
  • Strain relief for pump and float cords, provided by cord seals.
  • Indoor Tank Alert® AB alarm provides high level alarm notification.
  • SJE SignalMaster® control switch provides alarm activation.
  • Entire control system (panel, alarm, and float switch) is UL and cUL Listed to meet and/or exceed industry safety standards.
  • Five-year limited warranty.

Options:

  • Elapsed Timer Meter provides pump operation timer.
  • The Tank Alert® AB DUO alarm system can serve as high or low level alarm or filter alarm depending on the float switch model used.
  • MySpy® WiFi Messenger alarm provides remote alarm notification.

Specifications

  • VOLTAGE: 120 VAC or 230 VAC; 50/60hz
  • ENCLOSURE: 8″ x 8″ x 4″ (20.32 x 20.32 x 10.16 cm), NEMA 4X ultraviolet stabilized thermoplastic
  • RECEPTACLE PIGTAIL: 120 VAC NEMA 5-15R or 230 VAC NEMA 6-15R; 12.0″ (30.48 cm) SJTOW cable
  • MOUNTING POST: 22″ x 7″ x 6″ (55.88 x 17.78 x 15.24 cm) polyethylene weather proof gray engineered thermal plastic with 5.5″ x 6.0″ (13.97 x 15.24 cm) access cover
  • RISER EXTENSION KIT: 2.5″ (6.35 cm) diameter schedule 40 conduit, 6″ (15.24 cm) in length; (2) stainless steel compression nuts
  • LIQUID TIGHT CORD SEAL: Seal – neoprene; washers, nuts and bolts – stainless steel
  • FLOAT SWITCH: SJE SignalMaster® control switch with mounting clamp
  • ALARM: Indoor Tank Alert® AB alarm system, Tank Alert® AB DUO alarm system, or MySpy® WiFi Messenger alarm system
.
