Single Phase Simplex Pump Switch Control

model 115

The Model 115 Build-A-Panel™ control panel provides greater flexibility by ordering through options, allowing you to customize a standard panel to your specific needs.

The Model 115 control panel provides a reliable means of controlling one 120/208/240V single phase pump in water and wastewater applications.

A pump switch turns the pump on and off. If an alarm condition occurs, an additional alarm switch activates the audio/visual alarm system.

Common applications include pump chambers, sump pump basins, irrigation system and lift stations.

model 115

Features

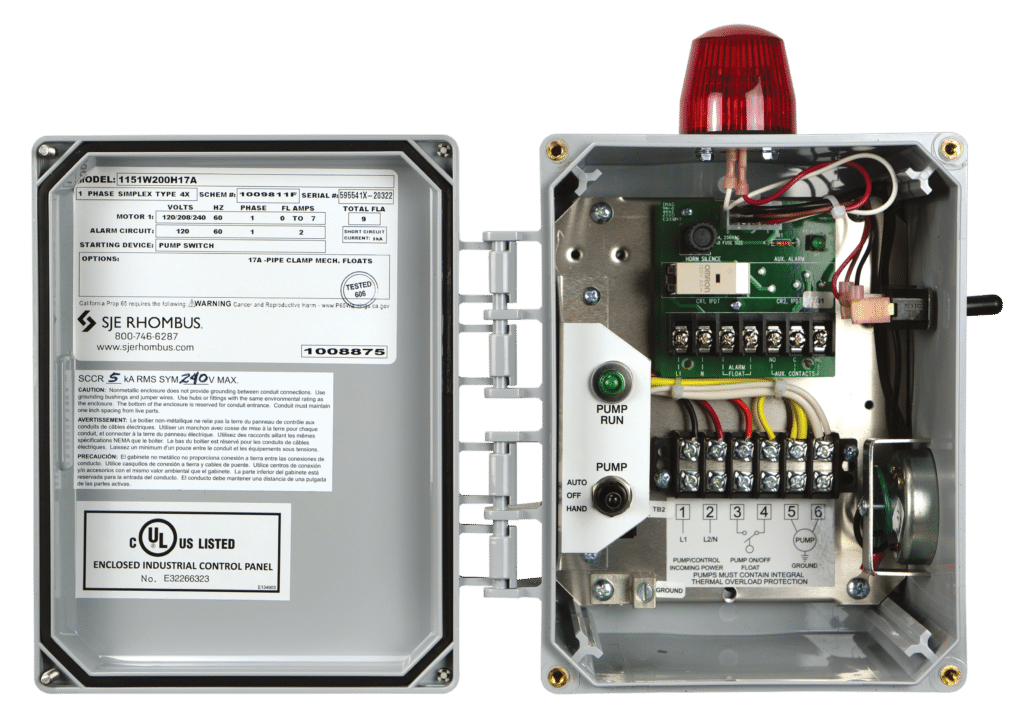

Panel Features:
  • Choice of NEMA 1 (indoor) or NEMA 4X (indoor/outdoor) enclosure
  • Red alarm beacon provides 360° visual check of alarm condition (NEMA 1 style uses a door mounted indicator in lieu of a beacon)
  • Alarm horn provides audio warning of alarm condition (NEMA 1 style uses an internally mounted buzzer in lieu of a horn)
  • Exterior alarm test/normal/silence switch allows horn and light to be tested and horn to be silenced in an alarm condition; alarm automatically resets once alarm condition is cleared
  • Horn silence relay
  • Hand/Off/Automatic (HOA) switch for manual pump control
  • Green pump run indicator light
  • Pump circuit terminal block
  • Alarm circuit terminal block
  • Alarm fuse/indicator
  • Ground lug
Options:
  • For a complete listing of available options, please view the backside of the catalog page.
UL/cUL Listed
Five-Year Limited Warranty

Specifications

ENCLOSURE:
  • 8 x 6 x 4 inches (20.32 x 15.24 x 10.16 cm)
  • Choice of NEMA 1 (steel for indoor use) or NEMA 4X (ultraviolet stabilized thermoplastic with removable mounting feet for indoor/outdoor use)
ALARM HORN:
  • 83 – 85 decibel rating
.
