Model 114
Single Phase Simplex Pump Control with Intrinsically Safe Circuits

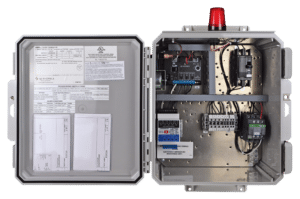

The Model 114 Build-A-Panel™ control panel provides greater flexibility by ordering through options, allowing you to customize a standard panel to your specific needs.
The Model 114 control panel is designed to control one 120/208/240V single phase pump in applications requiring intrinsically safe float circuits or other circuit extensions.
Two control switches activate a magnetic motor contactor to turn the pump on and off. If an alarm condition occurs, an alarm switch activates the audio/visual alarm system.
Common applications include pump chambers, lift stations or other installations classified as hazardous locations requiring intrinsically safe circuits.
Features
Panel Features:
- NEMA 4X (indoor/outdoor) enclosure
- Red alarm beacon provides 360° visual check of alarm condition
- Alarm horn provides audio warning of alarm condition
- Exterior alarm test/normal/silence switch allow horn and light to be tested and horn to be silenced in an alarm condition; alarm automatically resets once alarm condition is cleared
- Horn silence relay
- Intrinsically safe module limits the amount of energy to switches preventing ignition of flammable gases
- Intrinsically safe partition isolates the intrinsically safe wiring
- IEC motor contactor controls pump by switching electrical lines
- Hand/Off/Auto (HOA) switch for manual pump control
- Green pump run indicator light
- Alarm and control fuses/indicators
- Input power terminal block
- Ground lugs
- Circuit breaker (optional) provides pump disconnect and branch circuit protection
- Overload relay (optional) provides thermal overload protection for pump
Options:
- For a complete listing of available options, please view the backside of the catalog page.
UL/cUL Listed
Industrial control panel is UL Listed relating to hazardous locations with intrinsically safe circuit extensions
Five-Year Limited Warranty
*Model 114 control panels cannot be returned.
Specifications
ENCLOSURE:
- 16 x 14 x 6 inches (40.64 x 35.56 x 15.24 cm)
- NEMA 4X (ultraviolet stabilized thermoplastic with removable mounting feet for indoor/outdoor use)
ALARM HORN:
- 83 – 85 decibel rating
Downloads
Available Downloads
- Model 114 – Catalog Page with Pricing
- Model 114 – Catalog Page without Pricing
- Model 114 – Installation Instructions
- We’re Proud to Offer a Five-Year Limited Warranty
