Digital Timed Dose
Single Phase, Simplex Timed Dose Pump Control

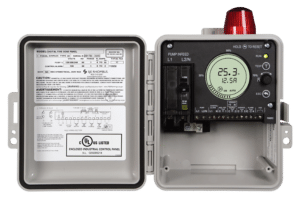

The Digital Timed Dose control panel provides a reliable means of controlling one single phase pump in onsite septic installations. This control panel can be operated using a level transmitter or float switches. A digital timer signals the pump to turn on and off through a power relay. A low level cutout float overrides the timer to prevent the pump from running dry. An alarm float activates the audible/visual alarm system indicating a high liquid level. Common applications include sand filter systems, pressure distribution systems, and mound systems.
Features
Panel Features:
- Level transmitter or float switch control
- LCD display with bar graph
- Tank level monitoring
- Float switch status
- Pump amps monitoring
- Run indication
- Pump run time
- Pump run cycles
- Pump protection
- Overload
- Redundant level control
- Adjustable level set points
- Pump run on high float alarm
- Float out of sequence monitoring
- Auxiliary alarm contact
- Fault history
Specifications
INPUT VOLTAGE:
- Single phase, 120/208/240 VAC, 60 Hz
PUMP RATINGS:
- 83 – 85 decibel rating
ENCLOSURE:
- 8 x 6 x 4 inch
- Padlockable NEMA 4X (ultraviolet stabilized thermoplastic with integral mounting feet for outdoor or indoor use)
ELECTRONIC OVERLOAD RANGE:
- 5-20A
PUMP CIRCUIT BREAKER:
- 25A
CONTROL/ALARM FUSE RATING:
- 2A, 120 VAC
AUXILIARY ALARM CONTACTS:
- N.O. 1 amp, 120 VAC Max
INPUTS:
- 2-4 float switches (normally open), 4-20mA level transmitter
