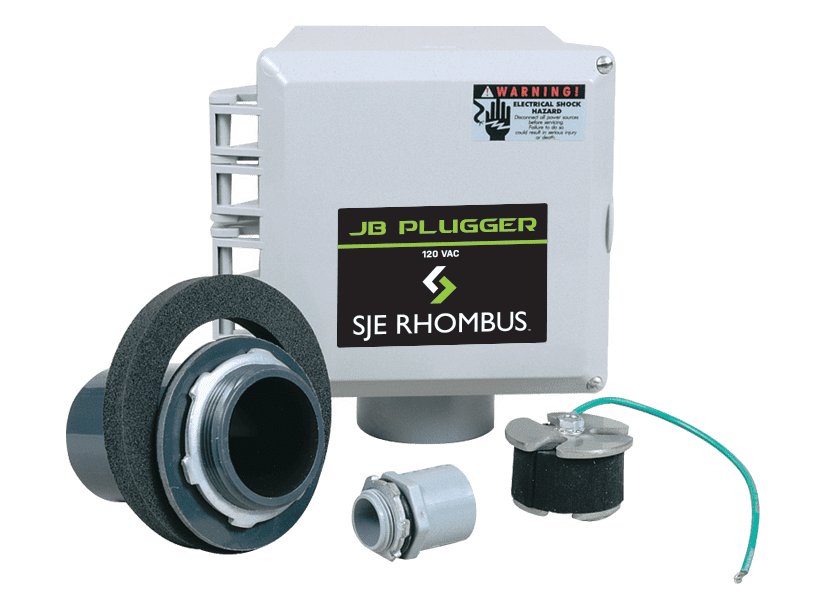

JB Plugger
Junction Box With Receptacle for Plug-In Pump Control
The JB Plugger junction box system provides a convenient wiring connection for a typical pump station application. It features a receptacle to accept a 120V or 230V piggy-back plug and a pump plug. An easy-to-use terminal strip allows connection to an alarm system.
The JB Plugger ensures a liquid-tight seal and strain relief for the cable entering the junction box from the pumping station.
Features
Features:
- NEMA 4X enclosure with hinged door
- Separate alarm and pump control circuit
- Receptacle for pump and pump switch (120/230V)
- Riser extension coupling and washers
- Customer engineered liquid-tight cable seal
- Strain relief for pump and float cords provided by cord seal
- Electrical conduit hub
- Terminal strip for use with alarm system
Options:
- Tank Alert® AB alarm system provides high or low level alarm
- Pump switch provides pump control
- Control switch provides alarm activation
UL/cUL Listed
Five-Year Limited Warranty
Specifications
ENCLOSURE:
- 6 x 6 x 4 inches (15.24 x 16.24 x 10.16 cm)
- NEMA 4X weatherproof thermoplastic
VOLTAGE:
- 120 VAC or 230 VAC
RECEPTACLE:
- 120 VAC NEMA type 5-15; 230 VAC NEMA type 6-15
CORD SEAL:
- Liquid-tight cord seal with strain relief
