SJE AmpMaster®
Mechanically-Activated, Wide-Angle Pump Switch
The 20 amp rated SJE AmpMaster® pump switch is designed to directly control grinder and high head sewage pumps up to 1 1/2 HP at 125 VAC and 3 HP at 250 VAC in grinder and lift station applications, as well as septic tank effluent pump (STEP) systems.
The SJE AmpMaster® pump switch is not sensitive to rotation or turbulence, allowing it to be used in both calm and turbulent applications. It is available for pump down applications only.
Features
- Maximum pump running current of 20 amps
- Heavy-duty contacts mounted on high-conductivity copper substrates
- Controls pumps up to 1 1/2 HP at 125 VAC and 3 HP at 250 VAC
- Second set of non-conductive contacts enhance switch activation
- For direct wiring in 125 VAC or 250 VAC applications (piggy-back plug model not available)
- Adjustable pumping range of 9 – 24 inches (23 -61 cm)
- Includes standard mounting clamp and boxed packaging

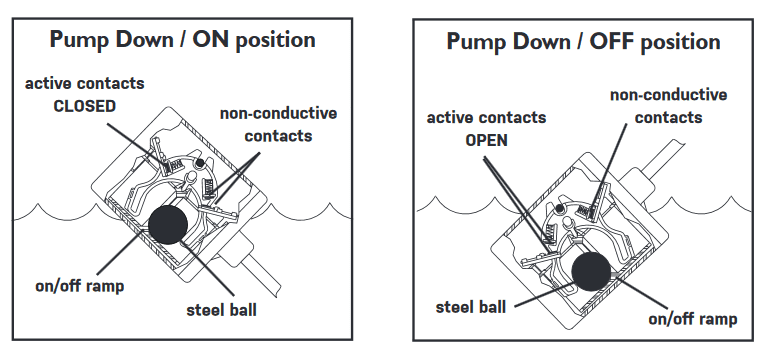

- SJE AmpMaster® Pump Switch Diagrams
Options:
- In standard cable lengths of 10, 15, 20, or 30 feet (3, 5, 6, or 10 meters) – longer lengths available
UL Recognized, CSA Certified
Five-Year Limited Warranty
Specifications
CABLE:
- Flexible 12 gauge, 2 conductor (UL, CSA) SJOW, water-resistant (CPE)
FLOAT:
- 3.05 inches diameter x 3.56 inches long (7.75 x 9.04 cm) high impact, corrosion resistance, PVC housing for use in sewage and water up to 120°F (50°C)
ELECTRICAL:
- 125 VAC 50/60 Hz Single Phase:
- Maximum Pump Running Current: 20 amps
- Maximum Pump Starting Current: 120 amps
- Recommended Pump HP: 1 1/2 HP or less
- 250 VAC 50/60 Hz Single Phase:
- Maximum Pump Running Current: 20 amps
- Maximum Pump Starting Current: 120 amps
- Recommended Pump HP: 3 HP or less
NOTE: This switch must be used with pumps that provide integral thermal overload protection. Certain pump applications may require the use of an external capacitor start kit.
A Pump Switch is designed for Horsepower (HP) rated loads and is not suitable for control (pilot duty) applications. It will fail prematurely when switching loads less than 1 Amp at 120 VAC. Select a float switch from our Control Switch offering for control applications.
