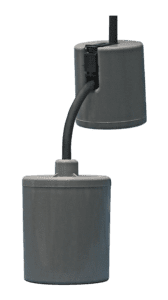

SJE PumpMaster® WPS
CSA Certified Potable Water Switch
Mechanically-activated, Wide Angle Float Switch for Potable Water Applications
The SJE PumpMaster® WPS is a mechanically-activated, wide-angle float switch providing automatic control in potable water and water applications. It provides direct control of pumps up to 1/2 HP at 120 VAC and 1 HP at 230 VAC or control applications as low as 120 VAC, 100 mA.
It is CSA Certified to meet NSF/ANSI 61 standard for use in potable water and approved for use in tanks of 250 US gallons (950L) in volume or greater per float.
It can be wired to work in either pump down (normally open) or pump up (normally closed) applications. It is not sensitive to rotation or turbulence allowing it to be used in both calm and turbulent applications.
Features
- Controls pumps up to 1/2 HP at 120 VAC and 1 HP at 230 VAC or control applications as low as 120 VAC, 100 mA.
- CSA Certified to meet NSF/ANSI 61 standard for use in potable water. Approved for use in tanks of 250 US gallons (950L) in volume or greater per float.
- Heavy-duty contacts.
- Adjustable pumping range of 7 to 36 inches (18 to 91 cm).
- For direct wiring applications.
- Can be wired to work in either pump down (normally open) or pump up (normally closed) applications (Single Pole, Double Throw).
- Includes external cable weight.
- Boxed packaging is standard.
CSA Certified for Potable Water
Five-Year Limited Warranty
Specifications
CABLE:
- Flexible 16 gauge, 3 conductor (UL, CSA) SJOW, water-resistant (CPE)
FLOAT:
- 3.05 inch diameter x 3.56 inch long (7.75 x 9.04 cm) high impact, corrosion resistant, PVC housing for use in potable water and water up to 140°F (60°C)
ELECTRICAL:
- 120/230 VAC 50/60 Hz
- 13 FLA, 85 LRA
NOTE: This switch must be used with pumps that provide integral thermal overload protection.
MINIMAL ELELCTRICAL LOAD:
- 120 VAC, 100 mA
NOTE: This switch is not intended to control non-arcing loads.
