Simplex Installation Kit

Simplex Installation Kit For Easier Control Panel Installation

simplex installation kit

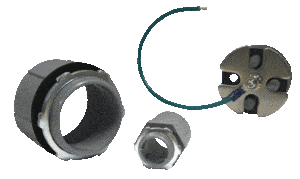

The Simplex Installation Kit provides an easy, weatherproof wire installation for simplex control panels.

simplex installation kit

Features

Includes:
  • 2 inch hub assembly
  • 2 inch cord seal (seals 1-4 cables)
  • 3/4 inch hub assembly

Specifications

CORD SEAL
SEAL:
  • Neoprene
WASHERS:
  • Stainless steel
NUT AND BOLT:
  • Stainless steel
WIRE/CABLE ACCOMMODATED:
  • SJOW, SJTW, 18/2, 18/3, 16/2, 16/3, 14/2 and 14/3
HUB ASSEMBLY
TERMINAL ADAPTER (HUB):
  • PVC
GASKET:
  • Neoprene
LOCK NUT:
  • Metal

Downloads

Available Downloads
Visit our downloads section of this website for additional literature.
