Cable Connectors

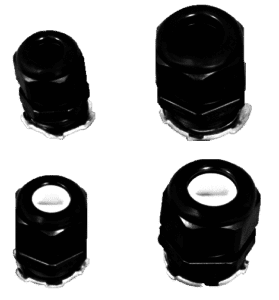

Round or Flat UF Connectors
Provides stain relief and a liquid-tight seal. Round or Flat UF Cable Connectors provide strain relief and a light tight seal.
Features
Round Connectors:
1/2 inch (RCC-8)
3/4 inch ((RCC-12)
1 inch (RCC-16)
Flat UF Connectors:
1/2 inch (UFCC-8)
3/4 inch (UFCC-12)
UL Listed, CSA Certified, VDE Approved
Specifications
Round Connectors
MATERIAL:
- Polymid flam-resisting, self-extinguishing plastic
O-RING:
- Neoprene plastic
HOLE REQUIREMENT:
- NPT threaded OR clearance holes (jam nut included)
RCC-8
- NPT Hub: .5 inch (1.27 cm)
- Maximum Diameter: .480 inch (1.22 cm)
- Minimum Diameter: .270 inch (.68 cm)
- Wire/Cable (AWG) Accommodated: 14/2, 14/3, 14/4, 12/2, 12/3, 12/4, 10/2, 10/3
RCC-12
- NPT Hub: .75 inch (1.27 cm)
- Maximum Diameter: .709 inch (1.80 cm)
- Minimum Diameter: .545 inch (1.38 cm)
- Wire/Cable (AWG) Accommodated: 14/2, 14/3, 14/4, 12/2, 12/3, 12/4, 10/2, 10/3
RCC-16
- NPT Hub: 1.0 inch (2.54 cm)
- Maximum Diameter: .98 inch (2.49 cm)
- Minimum Diameter: .71 inch (1.80 cm)
Flat UF Connectors
MATERIAL:
- weather-stabilized thermoplastic
O-RING:
- Neoprene plastic
HOLE REQUIREMENT:
- NPT threaded OR clearance holes (jam nut included)
UFCC-8
- NPT Hub: .5 inch (1.27 cm)
- Maximum: .26 x .56 inch slot
- Wire/Cable (AWG) Accommodated: 14/2, 12/2, 10/2
UFCC-12
- NPT Hub: .75 inch (1.90 cm)
- Maximum: .26 x .60 inch slot
- Wire/Cable (AWG) Accommodated: 14/3, 12/3
