4-20mA Simulator

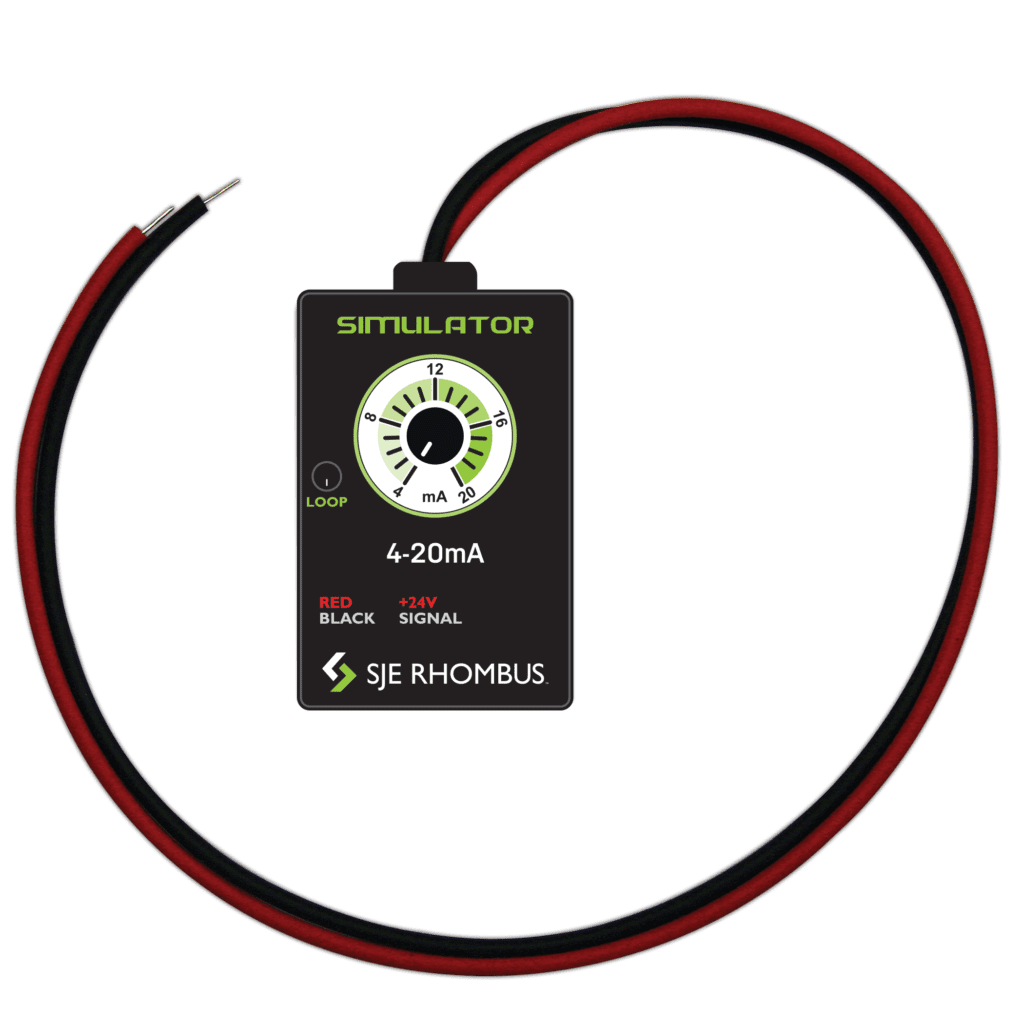

4-20mA simulator

The SJE Rhombus® 4-20mA Simulator is an easy-to-use, hand-held test instrument designed to generate an adjustable 4-20mA signal from loop power. The output of the Simulator is adjusted across the full range by turning the adjustment knob.

The 4-20mA Simulator can be used on a wide range of applications, provided the excitation voltage is within 12-24 VDC.

4-20mA simulator

Specifications

EXCITATION VOLTAGE:
  • 12-24 VDC +/-5%
SUPPLY CURRENT:
  • 30mA MAX.
OUTPUT SIGNAL:
  • 4-20mA
ACCURACY:
  • +/- .5mA
OPERATING TEMPERATURE:
  • +32o to 122oF
ENCLOSURE MATERIAL:
  • ABS plastic
WEIGHT:
  • 5 oz.
CABLE:
  • Spec: 20 AWG, 2 COND.
  • Length: 36 inches
  • Termination: Ferrule
FUSE:
  • 500mA 5x20MM Fast Flow
