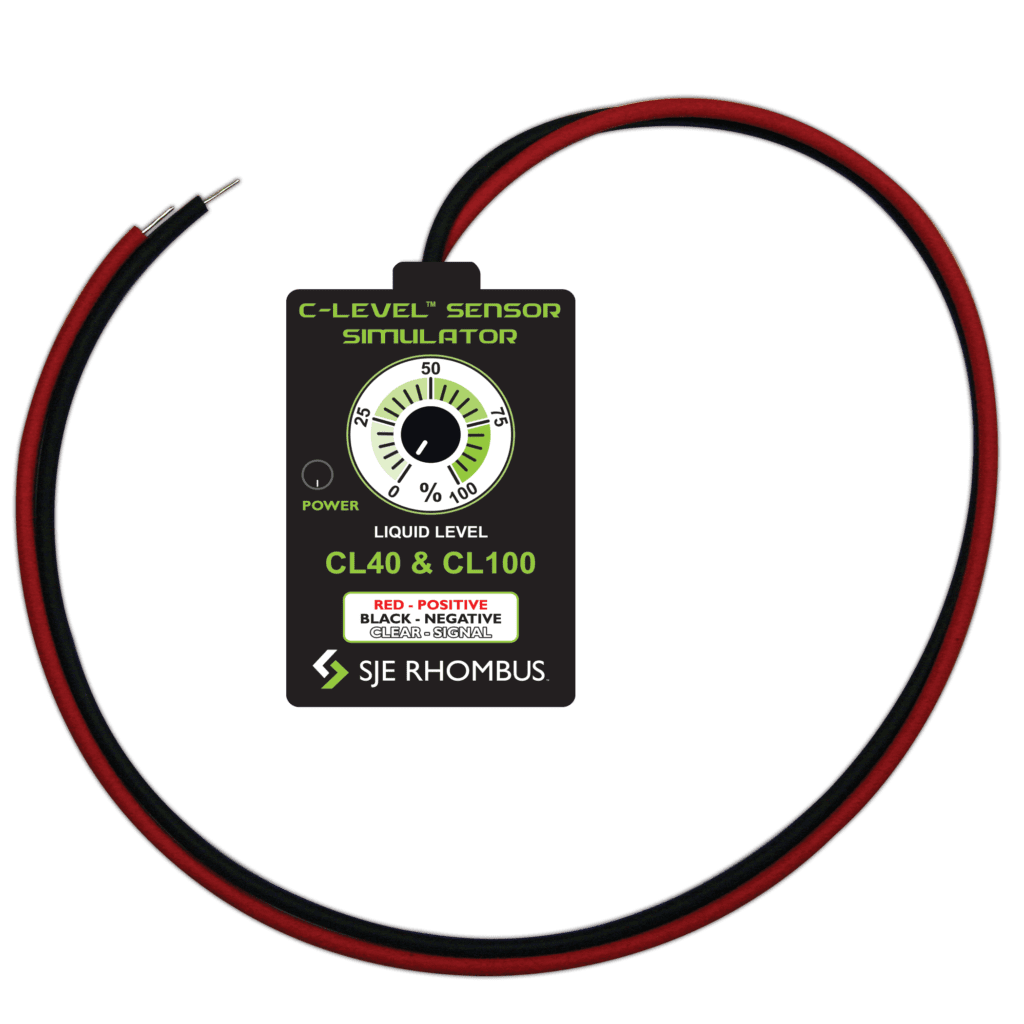

C-Level™ Sensor Simulator
Testing Instrument
The C-Level Simulator is design to work with and SJE Rhombus® C-Level™ floatless sensor enabled device.
The C-Level™ Sensor Simulator is an easy-to-use, hand-held test instrument designed to generate an adjustable C-Level™ sensor simulation signal. The out of the C-Level™ Sensor Simulator is adjusted across the full range by turning the simulator’s adjustment knob.
The C-Level™ Sensor Simulator can be used on almost any SJE Rhombus® C-Level™ Sensor enabled device.
Specifications
SUPPLY VOLTAGE:
- 7-13 vdc +/-5%
OUTPUT SIGNAL:
- Frequency (1kHz to 3kHz)
ACCURACY:
- +/-5%
OPERATING TEMPERATURE:
- +32o to +122oF
ENCLOSURE MATERIAL:
- ABS plastic
WEIGHT:
- 5 oz.
CABLE:
- 20 AWG, 3 COND.
- Length – 36 in.
- Termination: Ferrule
FUSE:
- 500mA 5x20MM fast blow
Downloads
Available Downloads
- C-Level™ Sensor Simulator – Catalog Page with Pricing
- C-Level™ Sensor Simulator – Catalog Page without Pricing
- C-Level™ Sensor Simulator – Install/Operation Instructions
