IFS Three Phase Simplex

Three Phase Simplex Demand/Timed Dose

ifs three phase simplex

Installer Friendly Series® control panels utilize circuit board technology for advanced pump control and system monitoring.

The Installer Friendly Series® Three Phase Simplex Demand/TD control panel is designed to control one 208/240/480V three phase pump in water and sewage installations.

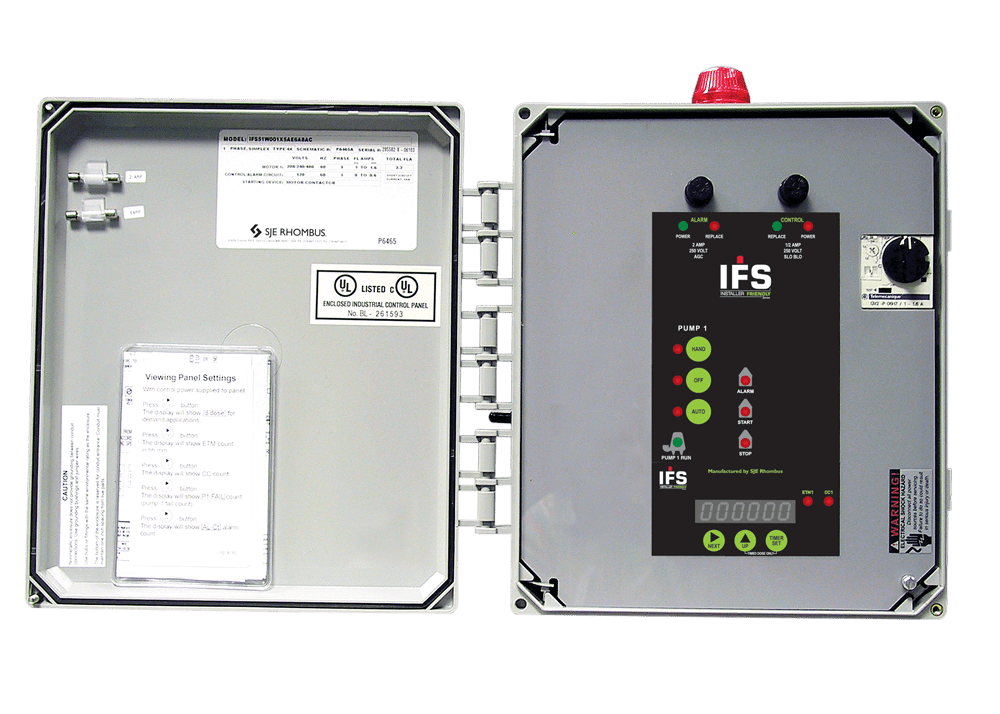

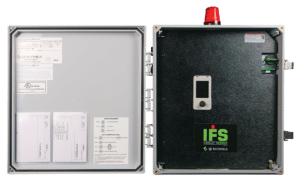

The IFS panel features a simple, easy-to-use touch pad on the inner door for programming and system monitoring. The panel configuration can be easily converted to demand dose or timed dose in the field.

The optional C-Level™ sensor is a pressure transducer that senses the liquid level in the tank and sends a signal to the IFS panel. Pump activation levels can be adjusted by using the panel touch pad. C-Level™ CL40 sensor operating range is 3-39.9 inches (7.6-101.3 cm). C-Level™ CL100 sensor operating range is 3-99.5 inches (7.6-252.7 cm).

Reg. Cdn. Pat. & TM Off.

Features

Touch Pad Features:

Level status indicators
Hand/Off/Automatic (HOA) buttons
Pump run indicator
LED display shows system information (see below)
Next push button
Up and set push buttons

LED Display Features:

Mode
Pump elapsed time (hh:mm)
Events (cycles)
Alarm counter
Float error counter
Timed dose override counter (TD only)
On/Off times (TD only)
Level in inches or centimeters (C-Level™ sensor only)

Panel Features:

NEMA 4X enclosure
Red alarm beacon provides 360° visual check of alarm condition
Exterior alarm test/normal/silence switch allows horn and light to be tested and horn to be silenced in an alarm condition; alarm automatically resets once alarm condition is cleared
Alarm horn provides audio warning of alarm condition
Motor protective switch provides adjustable overload, branch circuit protection and pump disconnect
IEC motor contactor controls pump by switching electrical lines
Multi-tap transformer (208/240/480 VAC primary) provides 120V control alarm voltage
Float connection terminal block
Control power indicator/fuse
Alarm power indicator/fuse
Large incoming power connection terminal block
Terminal block float wiring label
Ground lugs

UL/cUL Listed

Warranty

Five-year limited warranty on panel
Two-year limited warranty on C-Level™ Sensor

C-Level™ Sensor US Patent No. 8,567,242; 8,336,385; 8,650,949.

Specifications

ENCLOSURE:

14 x 12 x 6 inches (36.56 x 30.48 x 15.24 cm)
NEMA 4X (ultraviolet stabilized thermoplastic with removable mounting feet for indoor/outdoor use)

ALARM HORN:

83 – 85 decibel rating

Downloads

Available Downloads

Visit our downloads section of this website for additional literature.
