Simplex Subsurface Drip Irrigation

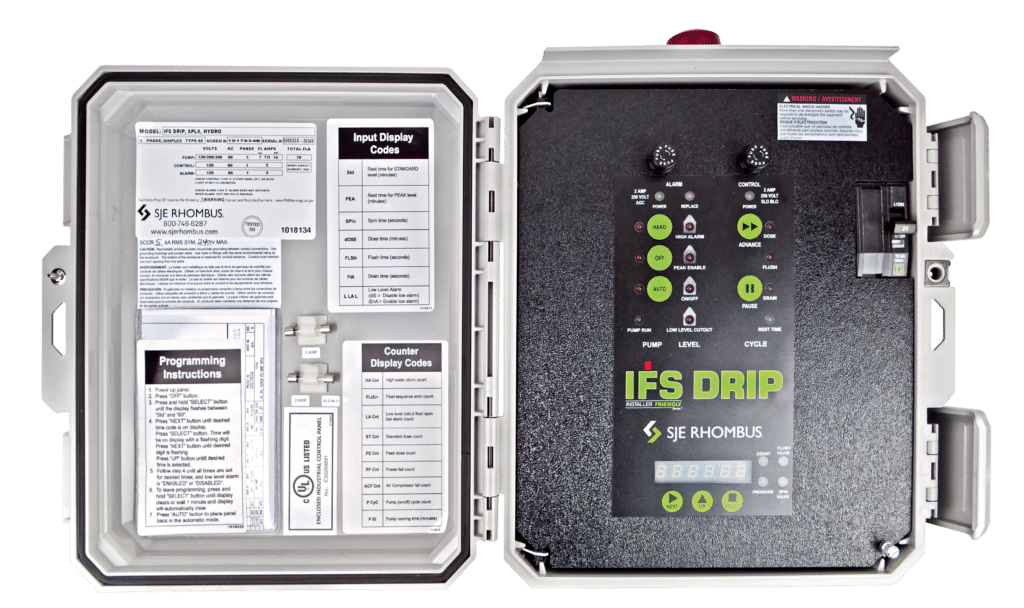

ifs drip panel inside

Installer Friendly Series® control panels utilize circuit board technology for advanced pump control and system monitoring.

The Installer Friendly Series® (IFS) Drip irrigation control panel is designed to control one 120V or 230V single phase pump for subsurface irrigation systems. The IFS Drip panel features a simplex, easy-to-use touch pad on the inner door for programming and monitoring system operation:

  • Rest for standard time
  • Rest for peak enable time
  • Spin filter flush time
  • Dose time
  • Field flush time
  • Field drain time
  • Low alarm activation
ifs drip panel inside

Features

Touch Pad Features:
  • Alarm and control power fuses/indicators
  • Alarm power replacement indicator
  • Hand/Off/Auto (HOA) buttons/indicators
  • Float status indicators
  • Cycle status indicators
  • Advance, pause, next, up and set buttons
  • Rest time indicator
  • Count indicator
  • Program indicator
  • Flush valve indicator
  • Spin valve indicator
  • 7 segment LED display shows high water alarm count, float status sequence error count, low level cutout float open low alarm count, standard dose count, power-fail count, pump on/off cycle count, pump run times (hh:mm), and peak does count.
  • Next, up, select buttons
LED Display Features:
  • High water alarm count
  • Float status sequence error count
  • Low level cutout float open low alarm count
  • Standard dose count
  • Power-fail count
  • Pump on/off cycle count
  • Pump run times (hh:mm)
  • Peak dose count
Panel Features:
  • NEMA 4X enclosure for indoor/outdoor use
  • Red alarm beacon provides 360° visual check of alarm condition
  • Exterior alarm test/normal/silence switch allows horn and light to be tested and horn to be silenced in an alarm condition; alarm automatically resets once alarm condition is cleared
  • Alarm horn provides audio warning of alarm condition
  • Circuit breaker provides pump disconnect and branch circuit protection
  • Circuit board provides power to main circuit board and contains terminal blocks for float and valve connections
  • Float connections
  • Valve connections
  • Magnetic motor contactor controls pump by switching electrical lines
  • Large incoming power/pump connection terminal block
  • Ground lugs
UL/cUL Listed
Five-Year Limited Warranty

Specifications

ENCLOSURE:
  • 12 x 10 x 6 inches (30.48 x 25.40 x 15.24 cm)
  • NEMA 4X (ultraviolet stabilized thermoplastic with removable mounting feet for indoor/outdoor use)
ALARM HORN:
  • 83 – 85 decibel rating
