EZ Series® In-Site® CL with Bluetooth® Duplex Demand/Timed Dose

In-Site to On-site Just Got Easier!

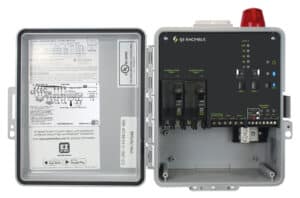

ez insite duplex panel inside

The EZ Series® In-Site® CL duplex control panel features wireless Bluetooth® connection for your smart device. Now there is no need to open the panel for configuration, viewing status or downloading data using the new EZ InSite® Connect App. The Bluetooth® module allows safe and secure access in all weather conditions to the control panel for quick and convenient configuration, viewing status or data download.

The EZ Series® In-Site® CL duplex control panel is designed to control two (alternating) 120, 208, 240 VAC single phase pumps in water and sewage installations. The alternating action equalizes pump wear. In addition to the alternating pump control, this system provides override control should either pump fail.

The panel configuration can easily be converted in the field to either a timed dose or demand dose using a tablet or smartphone. All system data including pump run times, pump cycles, alarm conditions, power outages, and more can be downloaded using the exclusive EZ InSite® Connect App. Data reports make diagnosing system conditions easy.

The panel utilizes the C-Level™ sensor for continuous level monitoring and records up to 4000 system events, including pump run times, pump cycles, alarm conditions, HOA settings, power outages, service calls and more. The C-Level™ sensor is a pressure transducer that senses the liquid level in the tank and sends a signal to the EZ Series® In-Site® panel. C-Level™ CL40 sensor operating range is 3-39.9 inches (7.6-101.3 cm). C-Level™ CL100 operating range is 3-99.5 inches (7.6-252.7 cm).

The new compact redesign (10” x 8” x 4”) is ideal for residential applications. The innovative internal design of components and integral mounting tabs make installation quick and simple. Includes integral padlockable latch for added safety.

The new EZ InSite Connect App allows you view real time pump run time, cycle counts, tank levels and more right from your smart device. All system data including pump run times, pump cycles, alarm conditions, power outages, and more can be downloaded using the EZ InSite Connect App, and analyzed using our exclusive InSite Reporting Software.

Get it on Google Play

ez insite duplex panel inside

Features

  • Entire control system is UL Listed to meet and/or exceed industry safety standards
  • Dual safety certification for the United States and Canada
  • Bluetooth® Wireless connection for easy configuration and data downloading to a smart mobile device
  • Complete with step-by-step installation instructions
UL/cUL Listed
Warranty
  • Five-year limited warranty on panel
  • Two-year limited warranty on C-Level™ Sensor
C-Level™ Sensor US Patent No. 8,567,242; 8,336,385; 8,650,949.

Specifications

  • Enclosure base measures 10 X 8 X 4 inches (25.4 X 20.32 X 10.16 cm). NEMA 4X (ultraviolet stabilized thermoplastic with integral mounting tabs for outdoor or indoor use). Includes integral locking latch as standard.
  • Red LED Alarm Beacon provides visual check of alarm condition.
  • Circuit Breakers provide pump power disconnect and branch circuit protection.
  • Safety Cover with touch safe design.
  • C-Level™ Sensor/Float Connection Terminal Block
  • Incoming Control/Alarm Power & Pump Power Terminal Block
  • Control Power Indicator light illuminates if control power is present in panel.
  • Float Status Indicator lights illuminate when float is active.
  • Pump Run Indicator lights illuminate when pumps are called to run.
  • Pump Manual Run Switches
  • Tank Level Indicator
  • Bluetooth® Wireless module
  • Ground lug(s)
  • Auxiliary Alarm Indicator

NOTE: Wiring Diagram and Pump Specification Label are located inside the panel.

NOT SHOWN:
  • Exterior Alarm Test/Silence Switch allows horn and light to be tested and horn to be silenced in an alarm condition. Alarm automatically resets once alarm condition is cleared.
  • Alarm Horn provides audio warning of alarm condition (83 to 85 decibel rating)
.
