EZ Series® Single Phase Simplex
Single Phase Simplex Demand/Timed Dose

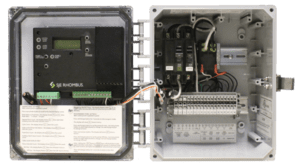

The EZ Series® Single Phase Simplex panel is designed to control one 120/208/240V single phase pump in water and sewage installations. It features a digital backlit LCD display on the inside of the front cover for programming pump control and system monitoring, including: float status, elapsed time pump run, cycle counter, alarm counts (high water/power fail), float error count, auxiliary alarm counter, timer override count (TD only), on/off time (TD only). This innovative control panel is easily converted to demand or timed dose in the field.
Reg. Cdn. Pat. & TM Off
Features
- NEMA 4X enclosure rated for outdoor use
- Locking latch for added safety
- Controller touch safe housing
- Digital backlit LCD display; 2 lines, 16 characters per line
- Pump Run button
- Menu/Enter & Set/Change buttons for programming and viewing control panel
- Two circuit breakers: one for pump power; another for control and alarm power
- Pump run relay (30 amp) controls pump by switching electrical lines
- Auxiliary alarm contacts
- Large terminal strip for easy wiring
Options:
- DUO alarms for local code compliance
- Optional mounting post with removable access door for easy wiring
- Duplex model available (demand dose only)
Specifications
Enclosure:
- 10 x 8 x 6 inches (25.4 x 20.32 x 15.24 cm)
- NEMA 4X (ultraviolet stabilized thermoplastic with removable mounting feet for indoor/outdoor use)
Alarm Horn:
- 83 -85 decibel rating
Downloads
Available Downloads:
- EZ Series® Single Phase Simplex – Catalog Page with Pricing
- EZ Series® Single Phase Simplex – Catalog Page without Pricing
- EZ Series® Single Phase Simplex – Features & Benefits
- EZ Series® Single Phase Simplex – Installation Instructions
- EZ Series® Single Phase Simplex – Circuit Board Replacement Installation Instructions
- We’re Proud to Offer a Five-Year Limited Warranty
