DPM-240

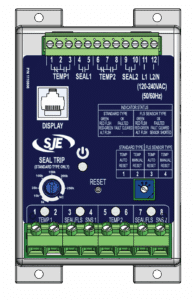

The DPM-240 dual channel module pump monitor is designed to protect two submersible pumps against damage resulting from seal failure and over temperature. In Modes 1 & 2, the resistance of the seal sensor and temp sensor in each pump is continuously monitored and alarms when the seal sensor resistance drops below the adjustable trip level and alarms on a temp failure when the sensor is open. In Modes 3 & 4, the resistance of combined seal/temp sensor in each pump is continuously monitored and faults on a temp failure when the sensor is open and faults on a seal fail when the resistance drops below 400 Ohms. The measured resistance in the pump seal chamber drops as the seal leaks and contaminants enter. Each input has a corresponding output relay and indicating LED which are activated during a fault condition. The module is equipped with a Seal Trip Adjustment dial, a manual reset button, and a 4-position mode selector switch.
