WellZone™ Pressure Controller

Single Phase Well Pump Control Panel

wellzone pressure controller

The WellZone™ digital controller provides pressure control for single phase 2-wire submersible well pump applications. It uses a 0-150 PSI pressure transducer to monitor the discharge pressure and turns the pump ON and OFF according to the Start and Stop setpoints. The LCD display is visible through the clear cover of the enclosure to allow for quick view of the system pressure, run status, hours run and pump cycles. The rotary button provides the user with a simple navigation method through the menu and program settings. It features built in pump protection including rapid cycling and dry run. It is preprogrammed to run the pump as the pressure drops below 40 PSI and stop as the pressure rises above 60 PSI. High & Low pressure settings are available with an auxiliary alarm relay.

water sensor

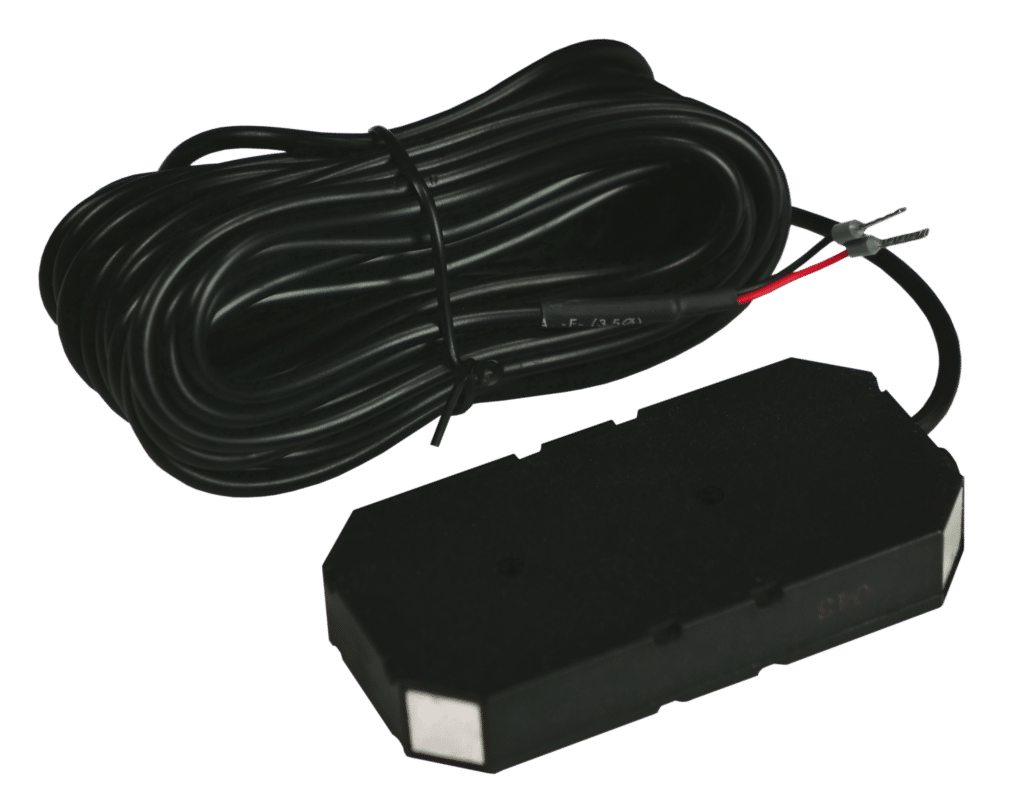

WS360 WATER SENSOR (OPTIONAL)

The WS360 water sensor is available exclusively with the WellZone™ Pressure Controller. When connected to a WellZone™ Pressure Controller, is designed to warn of potential water damage to end users. Place this sensor in any location where there is a risk of water damage: utility room, laundry, kitchen, bathroom, basement, AC drip pans, etc. When water reaches any side, top or bottom of the 360° sensor, an audible/visual alarm is activated; as well as remote notification sent via email/text to the contact(s) for the smart device set up with WiFi alarm unit. Up to five sensors may be connected in series to monitor multiple locations with one single alarm. One-year limited warranty.

wellzone pressure controller

Features

  • Includes a 0-150 PSI pressure transducer (No pressure switch needed)
  • LCD display with bar graph
    • Pressure reading
    • Pump amp reading
    • Pump on indicator
  • Adjustable pressure set points
    • Start /Stop pressure set points
    • High /Low pressure alarms
  • Advanced functions
    • Dry Run protection
    • Well recharge timer
    • Rapid cycle protection
    • Water filter replacement notification
    • Alarm history

Specifications

  • NEMA 4X enclosure 8 x 6 x 4 inches (20.32 x 15.24 x 10.16 cm) for indoor or outdoor use with integral padlockable latch for added safety.
  • Pump run green LED indicator
  • Pump test switch for manual control of the pump
  • Menu rotary encoder/selector switch
  • Menu ESC button
  • Auxiliary alarm contacts
  • Digital input for optional floor sensor or float switch
  • LCD display
  • Ground lug
  • Circuit breaker (20A, 2 pole)
  • cUL/US Listed
  • 5-year limited warranty
.
