H2O Drive® Constant Pressure Control

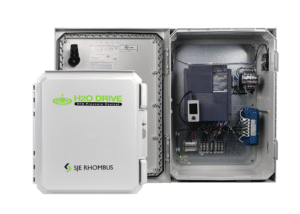

Variable Frequency Drive Well Pump Control Panel
The H2O Drive® control panel is designed to control a three phase submersible well pump in constant pressure control applications.
As flow conditions change in the pumping system, the VFD is able to automatically control the pump speed and maintain a constant pressure. The desired set pressure is entered on the color LCD display. The pressure transducer measures the pump system pressure.
This product is available to use with our Rapid Set™ mounting system to simplify your control package installation. The durable welded, stainless-steel, white power-coated frame with sunshield protects both operators and controls from the weather.
Features
- 2 step quick start wizard for easy setup
- 1. Enter set pressure
- 2. Enter well pump amps (SFA)
- Graphic color display (LCD):
- High Brightness / Direct sunlight readable
- Removable/handheld for easy programming
- Discharge Pressure (PSI)
- Pump run indication
- Pump speed (Hz)
- Pump Amps (A)
- Message bar (Status & Alarm)
- Alarm history
- Password protection
- Rotary button for easy menu navigation
- Pump dry run alarm
- Well recharge timer function
- High and Low Pressure Alarm
- Pump motor overload protection
- Monitors transducer faults
- Includes 0-150 PSI pressure transducer with cable
- 2 digital inputs for optional level or floor sensor
- 60Hz max. motor speed (default)
- Up to 80Hz max. possible in select systems
Specifications
- Enclosure: NEMA 3R ultraviolet stabilized thermoplastic rated for outdoor use with mounting flanges, padlockable cover
- Note: See specifications on back side for sizing.
- Vents for VFD cooling (not shown)
- Variable Frequency Drive
- LCD controller display
- Please see individual catalog page for each model
