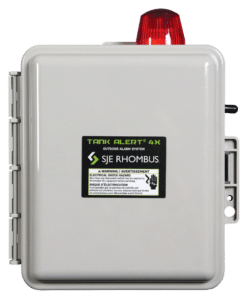

Tank Alert® 4X
Indoor/Outdoor Tank Alarm
This alarm system monitors liquid levels in lift pump chambers, sump pump basins, holding tanks, sewage, agricultural, and other water applications.
The Tank Alert® 4X alarm system can serve as a high or low level alarm depending on the float switch model used.
The alarm horn sounds and red LED beacon illuminates when a potentially threatening liquid level condition occurs. The horn can be silenced, but the alarm beacon remains on until the condition is remedied. Once the condition is cleared the alarm will automatically reset.
Need help picking the best alarm for your application? Try our handy interactive quiz! We also have an alarm comparison chart for quick reference.
Features
- NEMA 4X enclosure rated for indoor or outdoor use
- Automatic alarm reset and alarm test/normal/silence switch
- Alarm horn sounds at 88 decibels at 10 feet (3 meters)
- Alarm system (when installed on a separate circuit) operates even if pump circuit fails
- Auxiliary dry contacts (normally open and normally closed) for easy attachment of remote devices
Options:
- When ordered with the alarm, this system is available with alternate float switch models for high or low level warning.
UL/cUL Listed
Five-Year Limited Warranty
Specifications
VOLTAGE:
- 120 VAC, 50/60 Hz
ALARM ENCLOSURE:
- 8 x 6 x 4 inches (20.32 x 15.24 x 10.16 cm), NEMA 4X, indoor-outdoor, weatherproof, UV stabilized thermoplastic
ALARM HORN:
- 88 decibels at 10 feet (3 meters)
ALARM BEACON:
- UL Listed, Type 4X beacon assembly
AUXILIARY ALARM CONTACTS (Optional):
- 120 VAC. 5 amps max., 50/60 Hz
FLOAT SWITCH:
- SJE SignalMaster® control switch with mounting clamp
- Cable: 15 feet (4.57 meters), flexible 18 gauge, 2 conductor (UL) SJOW, water-resistant (CPE)
- Float: 2.74 inch diameter x 4.83 inches long (7.0 cm x 12.3 cm), high impact, corrosion resistant polypropylene housing for use in sewage and water up to 140°F (60°C)
- Maximum Water Depth: 30 Feet (9 meters), 13 psi
- Electrical: 5 amps, 125 VAC/250 VAC, 50/60 Hz
