Xpert Alert® Indoor Alarm System

WHEN IT COMES TO ALARMS, TRUST THE EXPERT

Description (English)

When it comes to sump and septic alarm systems, Trust the Expert! SJE Rhombus® has over 40 years of providing high quality residential alarm systems to users all over the world. With our exceptional customer service and an industry-leading 5-year limited warranty, SJE Rhombus is the leading choice for protecting your home and valuables!

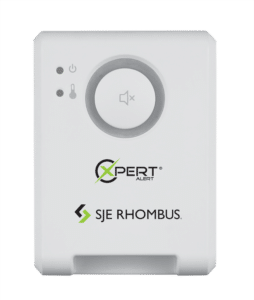

The Xpert Alert® indoor alarm system helps protect your home from potentially costly damage due to flooding, pump failure or freezing pipes. The sleek design of the enclosure, with its unique shape, smooth rounded edges, and large push button with LED light ring, makes this attractive alarm ideal for residential applications.
When the tank level rises, the high water float activates the alarm (audible and visual) to alert you of potentially threatening liquid level conditions. The Xpert Alert® alarm features an easy-to-see LED alarm light ring that illuminates red for alarm 1 and amber for alarm 2. The alarm horn can be silenced by pressing the large button, but the LED remains on as long as the alarm condition exists. Once the condition is cleared, the alarm automatically resets. A red “Low Temperature” LED activates when the temperature falls below 40°F (4°C) to help protect against freezing pipes; this can be disabled for installations in cold areas.



Description (Español)

¡Cuando se trata de alarmas para sistemas de sumideros y sépticos, confía en el Experto! SJE Rhombus® tiene más de 40 años proporcionando sistemas de alarmas residenciales de alta calidad a usuarios de todo el mundo. ¡Con nuestro excepcional servicio al cliente y una garantía limitada líder en la industria de 5 años, SJE Rhombus® es la mejor opción para proteger su hogar y objetos de valor!
El sistema de alarma para interiores Xpert Alert™ protege su hogar de daños npotencialmente costosos debido a inundaciones, fallas de la bomba o tuberías congeladas.
El elegante y único diseño del gabinete, con bordes redondeados y un gran botón npulsador con anillo de luz LED, hace que esta atractiva alarma sea ideal para aplicaciones residenciales.
Cuando el nivel de agua aumenta en el tanque, un interruptor de flotador activa la alarma (audible y visual) alertando condiciones de nivel de líquido potencialmente amenazadoras.
La Xpert Alert™ presenta un anillo de luz LED de alarma fácil de visualizar que se ilumina de color rojo para la alarma 1 y ámbar para la alarma 2. La bocina de la alarma se puede silenciar presionando el botón, pero la luz LED permanece encendida mientras la condición de alarma exista. Una vez que la condición se elimina, la alarma se reinicia automáticamente. Una luz LED de color rojo de “baja temperatura” se activa cuando esta desciende por debajo de 40°F (4°C) ayudando a proteger contra el congelamiento de las tuberías; esta puede ser deshabilitada para instalaciones en áreas con climas más templados.



Features

  • Sleek enclosure design features unique shape with smooth, rounded edges and large push button with LED light ring
  • Compact NEMA 1 enclosure, designed for ease of installation, rated for indoor use
  • Automatic alarm reset
  • (2) sensor inputs to monitor (2) separate liquid level conditions
  • LED alarm light ring alerts you of alarm status; red for alarm 1, amber for alarm 2
  • Audible alarm activates with alarm 1, alarm 2, low temperature and low battery chirp
  • Red LED low temperature indicator activates at 40°F (4°C) to alert you of potential freezing conditions
  • Low temperature alarm may be deactivated when temperature monitoring is not required
  • Green LED power on indicator
  • Alarm horn sounds at 80 decibels at 10 feet
  • Large, easy-to-use test/silence button located conveniently on front of alarm; simply press to test or silence alarm
  • If primary power fails, the alarm system continues to work due to battery backup feature
  • Complete package includes standard SJE MilliAmpMaster™ control switch with 10 feet of cable and mounting clamp
  • Switching mechanism operates on low voltage and is isolated from the power line to reduce the possibility of shock
  • Low battery chirp
  • Includes auxiliary contacts for attachment of remote devices (continues to operate during loss of primary power)
  • Covered terminal block for easy, secure float switch installation
CSA Certified
Five-Year Limited Warranty

CARACTERISTICAS

  • (2) entradas de sensor para monitorear separadamente (2) condiciones de nivel de líquido
  • El anillo de luz LED avisa sobre el estado de la alarma; rojo para la alarma 1, ámbar para la alarma 2
  • La alarma audible se activa con la alarma 1, alarma 2, baja temperatura y chirrido de batería baja
  • El indicador LED de baja temperatura se activa a 40°F (4°C) para alertar de posibles condiciones de congelación (verde – temperatura normal, rojo – baja temperatura)
  • La alarma de baja temperatura se puede desactivar cuando la temperatura no requiere monitoreo
  • Indicador LED de encendido (verde: poder primario, ámbar: batería de respaldo, rojo: batería baja)
  • Botón de prueba / silencio, fácil de usar ubicado convenientemente en frente de la alarma; simplemente presione para testear / probar o silenciar la alarma
  • Incluye contactos auxiliares para la conexión de dispositivos remotos (sigue funcionando durante la pérdida de poder primario)
  • Batería de respaldo / reserva
    CSA Certified
    Garantía limitada de cinco años

Specifications

VOLTAGE:
  • Primary: 120 VAC, 60 Hz, 5 watts max. (alarm condition)
  • Secondary: 5 VDC
BATTERY BACKUP POWER:
  • 4.5 VDC (3 AA batteries not included)
  • Operates for 24 hrs in alarm condition, one month when no alarm is present
ALARM ENCLOSURE:
  • 5.5 x 4 x 1.75 inch (14 x 10 x 4.5 cm), NEMA 1 plastic.
ALARM HORN:
  • 80 decibels at 10 feet (3 meters)
POWER CORD:
  • 6 foot (1.8 meter) MicroUSB
FLOAT SWITCH CONNECTION TERMINALS:
  • For float switch connection only – do not apply power. (Voltage across terminals is 3 VDC).
FLOAT SWITCH: SJE MilliAmpMaster™ control switch with mounting clamp
  • Cable: 3 meters (10 feet), flexible 18 gauge, 2 conductor (UL) SJOW, water-resistant (CPE)
  • Float: 7.0 cm x 12.3 cm long (2.74 inch diameter x 4.83 inch), high impact, corrosion resistant polypropylene housing for use in sewage and water up to 60°C (140°F)
AUXILIARY ALARM CONTACTS:
  • Normally open, normally closed (CSA certified)
  • Voltage: ≤ 30 VAC/VDC (Class 2)
  • Current: 1 amp maximum
