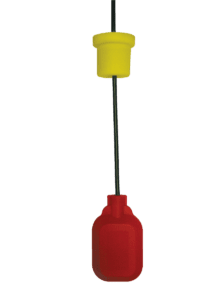

SJE Quest® Pump Float – Latin American Package
International Product
English
These mechanically-activated, wide-angle pump switches provide automatic control of pumps, alarms, and panels in wastewater and non-potable water applications.
This SJE Quest® float is packaged in a bilingual bag (English and Spanish) designed to easily display for retail customers in Latin America.
Spanish
El interruptor de flotador de bomba SJE Quest® está diseñado para el alto rendimiento y fiabilidad. Activado mecánicamente y de ángulo amplio proporciona control automático de bombas, alarmas y paneles de control en aguas residuales y aplicaciones de agua no potable.Este interruptor (flotador) de bomba SJE Quest® viene empacado en una bolsa bilingüe (inglés y español) diseñada para ser exhibida fácilmente en tiendas minoristas y mayoristas de Latinoamérica.
Features
Especificaciones:
- Capacidad eléctrica: 125/250 VAC, 50/60 Hz
- Contactos de acción rápida, activados mecánicamente (sin mercurio)
- Cable: H05 RNF 0.75mm2, de 3 conductores
- Proporciona control directo de bombas de hasta 3/4 HP en 250 VAC
- SPDT (doble función de vaciado y llenado)
- Dimensiones del interruptor: 7,7 cm x 13 cm x 4 cm (3 pulgadas x 5 pulgadas x 1,6 pulgadas)
- Rango de bombeo ajustable: 23-91 cm (9-36 pulgadas)
- El diseño patentado de sellado proporciona una excelente protección para mantener la carcasa del interruptor libre de humedad
- Incluye peso de cable de una sola pieza para su montaje
Specifications
- 125/250 VAC, 50/60 Hz, 4 Amp inductive load
- Mechanically-activated, snap action contacts (non-mercury)
- H05 RNF 0.75 mm2 3-conductor cable
- Direct control of pumps up to 3/4 HP at 250 VAC
- SPDT (3-wire, normally open or normally closed)
- Switch Dimensions: 7.7 cm x 13 cm x 4 cm (3 inch x 5 inch x 1.6 inch)
- Non-toxic, corrosion resistant polypropylene switch housing
- Temperature rating up to 50º C (122º F)
- Maximum water depth of 10 meters (30 feet)
- IPX8 enclosure rating
- Adjustable pumping range of 23 to 91 cm (9 to 36 inches)
- Patented sealing design provides excellent protection from moisture centering the float housing
- CE certified, TUV certified
- Includes one-piece cable weight for mounting
Note: These switches are not recommended for controlling electrical loads less than 100 mA, 12 VAC. Must be used with pumps that provide integral thermal overload protection.
A Pump Switch is designed for Horsepower (HP) rated loads and is not suitable for control (pilot duty) applications. It will fail prematurely when switching loads less than 1 Amp at 120 VAC. Select a float switch from our Control Switch offering for control applications.
Not available for sale in Canada or USA.
