SJE MegaMaster® (CSA Rated)

International Product

mega master

Description (English)

The SJE MegaMaster® mechanically-activated, internally weighted control float switch is designed for municipal water and sewage applications, including applications with high grease content. The internal switching mechanism has gold cross-point contacts for reliable control of current up to 1 Amp. The unique two-color float housing offers easy identification of float position. Common applications include lift stations, non-potable water, PLC (programmable logic controllers) and intrinsically safe applications.

Description (Español)

El flotador de control SJE MegaMaster® con peso interno y activado mecánicamente está diseñado para aplicaciones municipales de agua y alcantarillado, incluyendo aplicaciones con un gran contenido de grasa.
Cuenta con un sistema de contactos de puntos de cruce de oro para asegurar un control fiable en corrientes de hasta 1 Amp. La carcaza única de dos colores ofrece una fácil identificación de la posición de flotación. Lasaplicaciones más comunes incluyen estaciones de bombeo, agua no potable, PLC (controladores lógicos programables) y aplicaciones de seguridad intrínseca.



mega master float switch

Features

  • Mechanically-activated, internally weighted
  • Maximum Electric Load: 1 amp, 125 VAC
  • Minimum Electric Load: 1mA, 4 VDC
  • 3 wire cable – SPDT (Single Pole, Double Throw) can be wired as normally open or normally nclosed. Wire color: Common (white), N.O. (black), N.C. (red).
  • Cable: 18 gauge, 3 conductor, SJOW
  • Activation angle is 10° above/below horizontal
  • Flexible SJOW, water-resistant (CPE) jacket
  • High impact, corrosion resistant, polypropylene float housing
  • Temperature rating up to 60°C (140°F)
  • Maximum water depth of 9 meters (30 feet) or 90 kPa (13 PSI)
  • Float dimensions: 10.2 cm diameter x 16.85 cm long (4.03 x 6.62 inch)
  • CSA Certified; CE certified units available upon request

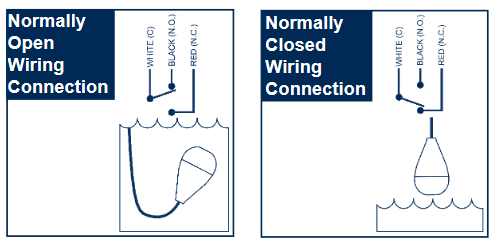

megamaster csa float diagram


CARACTERÍSTICAS

Carga Eléctrica Máxima:
  • 1 Amp, 125 VAC
Carga Eléctrica Mínima:
  • 1 mA, 4 VDC
Ángulo de Activación:
  • 10 grados por encima y 10 grados debajo de la horizontal
Material Flotador:
  • Polipropileno
Peso del Flotador:
  • 0.86 kg (1.9 libras)
Dimensiones:
  • 10, 2 cm de diámetro x 16,8 cm de largo (4,03” de diámetro x 6.62” de largo)
Cable:
  • calibre 18, 3 conductores, SJOW
Cable de 3 alambres
  • SPDT (llenado o vaciado) se puede conectar como normalmente abierto o normalmente cerrado

Specifications

CABLE:
  • flexible 18 gauge, 3 conductor, SJOW
FLOAT:
  • 10.2 cm diameter x 16.85 cm long (4.03 x 6.62 inch) high impact, corrosion resistant, polypropylene housing for use in sewage and water up to 60°F (140°C)
MAXIMUM WATER DEPTH:
  • 9 meters (30 feet), 13 PSI (90 kPa)
ELECTRICAL:
  • Maximum Electrical Load: 1 amp, 125 VAC
    Minimum Electrical Load: 1 mA, 4 VDC
.
