SJE EMD Series ™ CE Rated Control Panels

International Product

emd ce

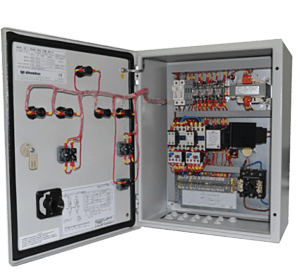

SJE EMD series are CE Rated electromechanical control panels designed to control one or two submersible single-phase or three-phase electric pumps in water and wastewater applications.
They are provided with a thermal overload protection relay incorporated in the IP55 weather-proof cabinet.
The control panels operate the pumps based on the liquid level from signals provided from float or pressure switches.
Applications
  • Water supply pumps
  • Wastewater pumps
  • Many more motor control applications

EMD Series

  • Models EMD1S / EMD1T
    • EMD1S is an electromechanical control panel for one single-phase pump with thermal overload protection.
      • Plastic enclosure
      • 400mm (H) x 300mm (W) x 180mm (D)
      • 8 kg
    • EMD1T is an electromechanical control panel for one three-phase pump with thermal overload protection.
      • Plastic enclosure
      • 400mm (H) x 300mm (W) x 180mm (D)
      • 8 kg
  • Models EMD2S / EMD2T
    • EMD2S is an electromechanical control panel for two single-phase pumps with thermal overload protection.
      • Metal enclosure – RAL 7035
      • 500mm (H) x 400mm (W) x 250mm (D)
      • 18 kg
    • EMD2T is an electromechanical control panel for two three-phase pumps with thermal overload protection.
      • Metal enclosure – RAL 7035
      • 500mm (H) x 400mm (W) x 250mm (D)
      • 18 kg
emd ce

Features

  • Input Power:
    • 1~ 50/60 Hz, 230V ±10%
    • 3~ 50/60 Hz, 400V ±10%
  • Power:
    • 0.25~4Kw (single phase)
    • 0.25~37Kw (three phase)
  • Direct On Line (DOL) motor starters
  • 230V/24V, 400V/24V transformer for control circuit
  • Low voltage inputs for float or pressure switches
  • Hand-Off-Auto selector switches for each pump
  • Main power disconnect switch with door interlock handle
  • LED indicator lights for Power ON, Pump Running, and Pump Tripped
  • High level alarm buzzer
  • Alarm silence push button
  • Protection class: IP55
  • Operating temperature: -5ºC to +40ºC
  • Storage temperature: -20ºC to +60ºC
  • Relative humidity: 50% at 40ºC, non-condensing
  • Automatic pump alternation (dual pump)
  • Thermal overload relay with phase loss sensitivity
  • Motor short-circuit and over-current
  • Control transformer with fusing
  • CE certified – no agency approvals for use in the United States or Canada.

Specifications

Options
  • Emergency stop button
  • Power failure alarm
  • Horn and beacon, 24 VDC (two auxiliary relays) for level alarm
  • Phase loss, phase reversal, over-voltage, under-voltage protection
  • Hour meter for each pump
  • Cycle counter for each pump
  • Voltmeter / Ammeter
  • Panel anti-condensation heater
  • Additional options available upon request
