NEX Series® Duplex Panel

Single Phase Duplex Control Panel
Compact Single Phase, Duplex Alternating Pump Control with Override Panel

The NEX Series® duplex control panel is designed to alternately control two 120, 208, or 240 VAC single phase pumps in water and sewage installations. The alternating action equalizes pump wear. In addition to the alternating pump control, this system provides override control should either pump fail. If an alarm condition occurs, an alarm switch activates the audible/visual alarm system. The compact design (10 x 8 x 4”) is ideal for residential applications. Universal pump voltage and control/alarm power allow the NEX Series® panel to handle three voltages (120/208/240V). The innovative internal design of components and integral mounting tabs make installation quick and simple.

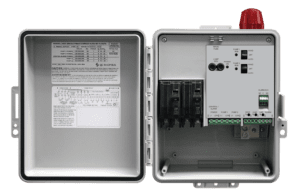

nex duplex panel inside

Features

Panel Components:
  • Enclosure measures 10x8x4 in NEMA 4X
  • Padlockable latch
  • Integral mounting feet for indoor or outdoor use
  • Power Relays (not shown) control pump by switching electrical lines
  • HOA switches for manual pump control
  • Green pump run indicator lights
  • Field wiring terminal blocks
  • Control/alarm fuses
  • Control/alarm power indicator
  • Ground lug
  • Circuit breakers
  • Float status indicator lights
  • Elapsed time meters (optional)
  • Standard alarm package:
    • Red alarm beacon
    • Alarm horn
    • Exterior alarm test/silence push button switch
    • Auxiliary alarm contacts
Features:
  • Compact 10 x 8 x 4″ enclosure design is an ideal solution for residential applications
  • Entire control system (panel and switches) is UL Listed to meet and/or exceed industry safety standards
  • Dual safety certification for the United States and Canada
  • Standard package includes 20′ SJE SignalMaster® control switches
  • Complete with step-by-step installation instructions
UL/cUL Listed
Five-Year Limited Warranty
Patent Pending

Specifications

VOLTAGE SUPPLY:
  • PUMP: 120/208/240 VAC, 50/60 Hz
  • CONTROL/ALARM: 120/208/240 VAC, 50/60 Hz
ENCLOSURE:
  • 10 x 8 x 4 inch (25 x 20 x 10 cm)
  • Padlockable NEMA 4X (ultraviolet stabilized thermoplastic with integral mounting feet for outdoor or indoor use)
FLOAT CONTROL VOLTAGE:
  • 12 VDC
PUMP AMPS:
  • 0-12 Amps; 9-20 Amps
AUXILIARY ALARM CONTACTS:
  • Form C, 5 Amp, 120 VAC Max
ALARM HORN:
  • 85 – 90 decible rating
.
