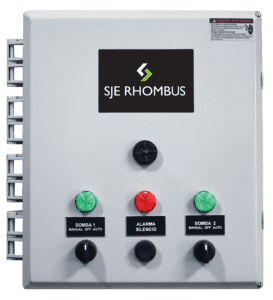

Model LA32 Control Panel

International Product

Description (English)

The Model LA32 control panel is designed to alternately control two 208/240/480 VAC three phase pumps in industrial and commercial water and sewage systems. The alternating action equalizes pump wear. In addition to the alternating pump control, this system provides override control should either pump fail. If an alarm condition occurs, the alarm switch activates the audio/ visual alarm system. Common applications include lift stations, pump chambers, and irrigation systems.
The LA32 control panel is designed for the Latin American market and features external door labels in Spanish. Installation instructions are bilingual (English/Spanish).

Description (Español)

El panel de control modelo LA32 está diseñado para controlar dos bombas trifásicas 208/240/480 VAC en aplicaciones industriales y comerciales de agua y alcantarillado. La acción de alternación iguala el desgaste de las bombas. Además del control de alternación, este sistema proporciona un control de anulación si cualquiera de las bombas falla y cuenta con un temporizador de retardo para la bomba secundaria. Si se produce una condición de alarma, un interruptor de flotador o presión activa el sistema de alarma audible / visual. Las aplicaciones más comunes incluyen vaciado de cárcamos, llenado de depósitos, sistemas hidroneumáticos y de riego.
El panel de control LA32 está diseñado para el mercado Latinoamericano y presenta etiquetas en español en las puertas externas. Las instrucciones de instalación son bilingües (inglés / español).
la32 panel de control

Features

  • Enclosure measures 35.56 x 30.48 x 15.24 cm (14 x 12 x 6 inches) NEMA 4X (ultraviolet stabilized thermoplastic with removable mounting feet for outdoor or indoor use)
  • IEC Motor Contactors control pumps by switching electrical lines
  • Multi-Tap Transformer 208/240/480 VAC primary incoming voltage
  • Motor Protective Switches provide adjustable overload, branch circuit protection, phase loss/imbalance protection and pump disconnect
  • Alarm Horn provides audible warning of alarm condition (83 to 85 decibel)
  • Alarm/Control Supplemental Fuse on the transformer
  • Float Status Indicator Lights mounted on controller
  • Low Voltage Float Switch Terminal Block mounted on controller
  • 22mm Pump Run Lights mounted on door and controller
  • 22mm HOA (Hand/Off/Automatic) Switches mounted on door
  • 22mm Alarm Light mounted on door
  • 22mm Alarm Silence Button
  • Multi-Tap Transformer Wire (field installed for proper voltage)
  • Lag Pump on Delay Timer
  • Power On Light mounted on controller
  • Lead/Lag Selector Switch mounted on controller
  • Ground Lugs
NOTE:Exterior door labels are in Spanish. Installation instructions
and schematic are bilingual (English/Spanish).

COMPONENTES

  • Gabinete NEMA 4X para exteriores
  • Contactores de motor IEC
  • Transformador multi-tap
  • Interruptores de protección de motor
  • Controlador de bomba dúplex DPC-4F
  • Luces LED indicadoras de estado de interruptores de flotador y/o presión
  • Luces LED de bombas funcionando
  • Luz LED de encendido (Poder)
  • Temporizador de retardo para bomba secundaria
  • Bloque de terminales para interruptores de flotador y/o presión
  • Bocina de alarma
  • Interruptores HOA de 22mm
  • Luz roja de alarma de 22mm
  • Botón de alarma (silenciador) de 22mm
  • Luces de bombas funcionando de 22mm
  • Cable de transformador múlti-tap
  • Terminal a tierra

Specifications

  • Enclosure measures 35.56 x 30.48 x 15.24 cm (14 x 12 x 6 inches) NEMA 4X (ultraviolet stabilized thermoplastic with removable mounting feet for outdoor or indoor use)
