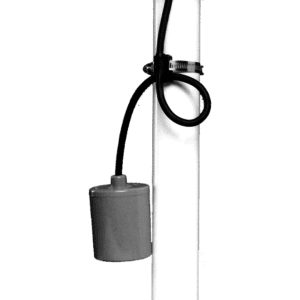

SJE PumpMaster®
International Version
Pump switches provide automatic pump control.
The SJE PumpMaster® pump switch is designed to directly control pumps up to 1/2 HP at 120 VAC and 1 HP at 230 VAC in water and sewage applications.
The SJE PumpMaster® pump switch is not sensitive to rotation or turbulence, allowing it to be used in both calm and turbulent applications.
Check out the new SJE PumpMaster® Quick Fit pump switch – the float and piggy-back plug are separate to allow for a quick fit installation.
Features
- Heavy-duty contacts
- Controls pumps up to 1/2 HP at 120 VAC and 1 HP at 230 VAC
- Adjustable pumping range of 7 – 36 inches (18 -91 cm)
- Includes standard mounting clamp and boxed packaging
- SJE PumpMaster® pump switch on/off position diagram
Options:
- For pump up or pump down applications as specified by part number
- With a 120 VAC or 230 VAC piggy-back plug
- Without a plug for direct wiring in 120 VAC or 230 VAC applications
- In standard cable lengths of 10, 15, 20, or 30 feet (3, 5, 6, or 10 meters) – longer lengths available
UL Recognized, CSA Certified
Five-Year Limited Warranty
Specifications
CABLE:
- Flexible 16 gauge, 2 conductor (UL, CSA) SJOW, water-resistant (CPE)
FLOAT:
- 3.05 inches diameter x 3.56 inches long (7.75 x 9.04 cm) high impact, corrosion resistance, PVC housing for use in sewage and water up to 140°F (60°C)
ELECTRICAL:
- 120 VAC 50/60 Hz Single Phase:
- Maximum Pump Running Current: 13 amps
- Maximum Pump Starting Current: 85 amps
- Recommended Pump HP: 1/2 HP or less
- 230 VAC 50/60 Hz Single Phase:
- Maximum Pump Running Current: 13 amps
- Maximum Pump Starting Current: 85 amps
- Recommended Pump HP: 1 HP or less
NOTE: This switch must be used with pumps that provide integral thermal overload protection.
A Pump Switch is designed for Horsepower (HP) rated loads and is not suitable for control (pilot duty) applications. It will fail prematurely when switching loads less than 1 Amp at 120 VAC. Select a float switch from our Control Switch offering for control applications.
