Single Phase Simplex Motor Contactor or Pump Switch Control



The Model 111 Build-A-Panel™ control panel provides greater flexibility by ordering through options, allowing you to customize a standard panel to your specific needs.

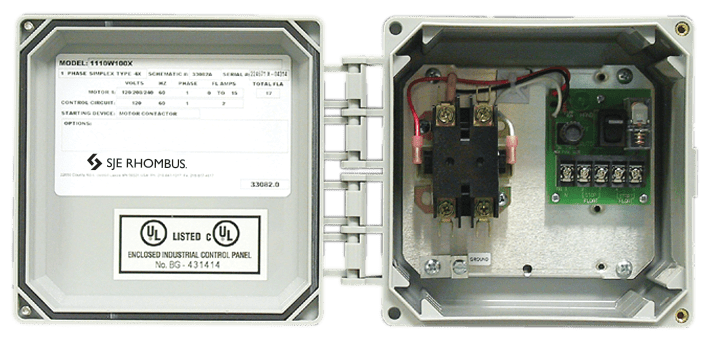

The Model 111 control panel provides a reliable means of controlling on 120/208/240V single phase pump in water and wastewater applications by either a motor contactor or pump switch.

The motor contactor model utilizes two control switches that activate a magnetic motor contactor to turn the pump on and off. The pump switch model utilizes a pump switch as the pump starting device.

Common applications include pump chambers, sump pump basins, irrigation system and lift stations.

Features

Panel Features:
  • Choice of NEMA 1 (indoor) or NEMA 4X (indoor/outdoor) enclosure
  • Hand/Off/Automatic (HOA) switch for manual pump control
  • Green pump run indicator light
  • Terminal block
  • Control fuse
  • Magnetic motor contactor (motor contactor models only) controls pump by switching electrical lines
Options:
  • For a complete listing of available options, please view the backside of the catalog page.
UL/cUL Listed
Five-Year Limited Warranty

Specifications

ENCLOSURE:
  • 6 x 6 x 4 inches (15.24 x 15.24 x 10.16 cm)
  • Choice of NEMA 1 (steel for indoor use) or NEMA 4X (ultraviolet stabilized thermoplastic with removable mounting feet for indoor/outdoor use)
